| 系列 | PEL-3000E |

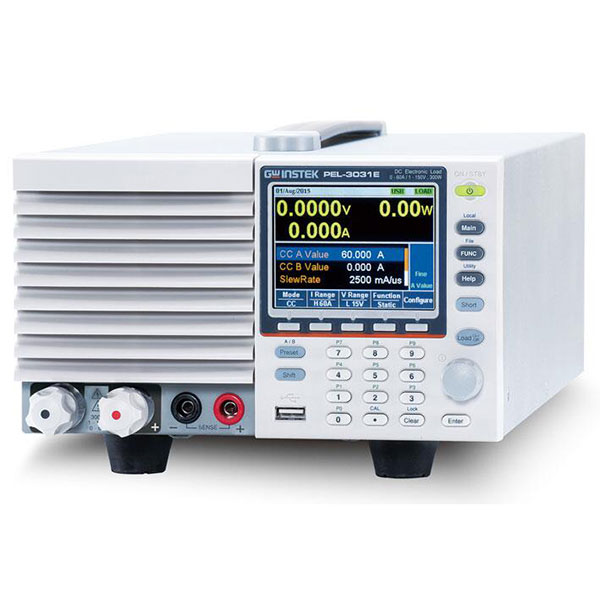

| 型號 | PEL-3031E | PEL-3032E |
| 功率 | 300W | 300W |
| 檔位 | Low | High | Low | High |
| 電壓 | 1~150V | 1~150V | 2.5~500V | 2.5~500V |
| 電流 | 0~6A | 0~60A | 0~1.5A | 0~15A |
| 最小操作電壓(DC) | 1V-6A | 1V-60A | 2.5V-1.5A | 2.5V-15A |
| 基本模式 |
|
|
|
|
| CC模式 |
|
|
|
|
| 范圍 | 0~6A | 0~60A | 0~1.5A | 0~15A |
| 設置范圍 | 0~6.12A | 0~61.2A | 0~1.53A | 0~15.3A |
| 分辨率 | 0.2mA | 2mA | 0.05mA | 0.5mA |
| 精確度 | (T *1) ± (0.1% of set +0.1% of F.S) +Vin/500 kΩ (Full scale of High range) | (T *1) ± (0.1% of set +0.2% of F.S) +Vin/500 kΩ (Full scale of High range) | (T *1) ± (0.1% of set +0.1% of F.S) +Vin/500 kΩ (Full scale of High range) | (T *1) ± (0.1% of set +0.2% of F.S) +Vin/500 kΩ (Full scale of High range) |
| CR模式 |
|
|
|
|
| 范圍 | 60S-0.002S(0.01666Ω~500Ω)(300W/15V); | 6S-0.0002S(0.16666Ω~5KΩ)(300W/50V); |
| 6S-0.0002S(0.1666Ω -5kΩ )(300W/150V) | 0.6S-0.00002S(1.6666Ω -50kΩ )(300W/500V) |
| 設置范圍 | 60S-0.002S(0.01666Ω~500Ω)(300W/15V); | 6S-0.0002S(0.16666Ω~5KΩ)(300W/50V); |
| 6S-0.0002S(0.1666Ω -5kΩ )(300W/150V) | 0.6S-0.00002S(1.6666Ω -50kΩ )(300W/500V) |
| 分辨率(30000 steps) | 0.002S(15V) ; 0.0002S(150V) | 0.0002S(50V) ; 0.00002S(500V) |
| 精確度 | (T *1) ± (0.3% of set + 0.6S) + 0.002mS | (T *1) ± (0.3% of set + 0.06S) + 0.002mS |
| CP模式 |
|
|
|
|
| 范圍 | 1~15V | 1~150V | 2.5~50V | 2.5~500V |
| 設置范圍 | 0~15.3V | 0~153V | 0~51V | 0~510V |
| 分辨率 | 0.5mV | 5mV | 1mV | 10mV |
| 精確度 | (T *1)± (0.1% of set + 0.1% of F.S) | (T *1)± (0.1% of set + 0.1% of F.S) | (T *1)± (0.1% of set + 0.1% of F.S) | (T *1)± (0.1% of set + 0.1% of F.S) |
| (Full scale of Low range) | (Full scale of High range) | (Full scale of Low range) | (Full scale of High range) |
| CP模式 |
|
|
|
|
| 范圍 | 0W-30W(6A) | 0W-300W(60A) | 0W-30W(1.5A) | 0W-300W(15A) |
| 設置范圍 | 0W-30.6W | 0W-306W | 0W-30.6W | 0W-306W |
| 分辨率 | 1mW | 10mW | 1mW | 10mW |
| 精確度 | (T *1)±(0.6 % of set + 1.4 % of f.s (Full scale of H range)) + Vin^2/500 kΩ | (T *1)±(0.6 % of set + 1.4 % of f.s (Full scale of H range)) + Vin^2/500 kΩ |
| 動態模式 |
|
|
|
|
| 通用 |
|
|
|
|
| T1& T2 | 0.05mS - 30mS / Res : 1uS; 30mS - 30S / Res : 1mS | 0.05mS - 30mS / Res : 1uS; 30mS - 30S / Res : 1mS |
| 精確度 | 1uS / 1mS ± 200ppm | 1uS / 1mS ± 200ppm |
| 斜率(精度10%) | 0.001~0.25A/uS | 0.01~2.5A/uS | 0.25mA~62.5mA/uS | 2.5mA~625mA/uS |
| 斜率分辨率 | 0.001A/uS | 0.01A/uS | 0.25mA/uS | 2.5mA/uS |
| 斜率設置精度 | ±(10% + 15us) | ±(10% + 15us) |
| * Time to reach from 10% to 90% when the current is varied from 2% to 100% (20% to 100% in L range) of the rated current. |
| CC模式 |
|
|
|
|
| 范圍 | 0~6A | 0~60A | 0~1.5A | 0~15A |
| 設置范圍 | 0~6.12A | 0~61.2A | 0~1.53A | 0~15.3A |
| 電流分辨率 | 0.2mA | 2mA | 0.05mA | 0.5mA |
| 電流精確度 | ±0.8% F.S. | ±0.8% F.S. |
| CR模式 |
|
|
|
|
| 范圍 | 60S-0.002S(0.01666Ω~500Ω)(300W/15V); | 6S-0.0002S(0.16666Ω~5KΩ)(300W/50V); |
| 6S-0.0002S(0.1666Ω -5kΩ )(300W/150V) | 0.6S-0.00002S(1.6666Ω -50kΩ )(300W/500V) |
| 設置范圍 | 60S-0.002S(0.01666Ω~500Ω)(300W/15V); | 6S-0.0002S(0.16666Ω~5KΩ)(300W/50V); |
| 6S-0.0002S(0.1666Ω -5kΩ )(300W/150V) | 0.6S-0.00002S(1.6666Ω-50kΩ )(300W/500V) |
| 設置范圍 | 30000 steps | 30000 steps |
| 電阻分辨率 | (T *1)±(1% of set + 0.6S) + 0.002mS | (T *1)±(1% of set + 0.06S) + 0.002mS |
| 測量 |
|
|
|
|
| 電壓回讀值 |
|
|
|
|
| 范圍 | 0~15V | 0~150V | 0~50V | 0~500V |
| 分辨率 | 0.5mV | 5mV | 2mV | 20mV |
| 精度 | (T *1)± (0.1% of rdg + 0.1% of F.S) | (T *1)± (0.1% of rdg + 0.1% of F.S) | (T *1)± (0.1% of rdg + 0.1% of F.S) | (T *1)± (0.1% of rdg + 0.1% of F.S) |
| (Full scale of Low range) | (Full scale of High range) | (Full scale of Low range) | (Full scale of High range) |
| 電流回讀值 |
|
|
|
|
| 范圍 | 0~6A | 0~60A | 0~1.5A | 0~15A |
| 分辨率 | 0.2mA | 2mA | 0.05mA | 0.5mA |
| 通用 | (T *1)± (0.1% of rdg + 0.1% of F.S) | (T *1)± (0.1% of rdg + 0.2% of F.S) | (T *1)± (0.1% of rdg + 0.1% of F.S) | (T *1)± (0.1% of rdg + 0.2% of F.S) |
| (Full scale of High range) | (Full scale of High range) | (Full scale of High range) | (Full scale of High range) |
| 通用 |
|
|
|
|
| 功能 |
|
|
|
|

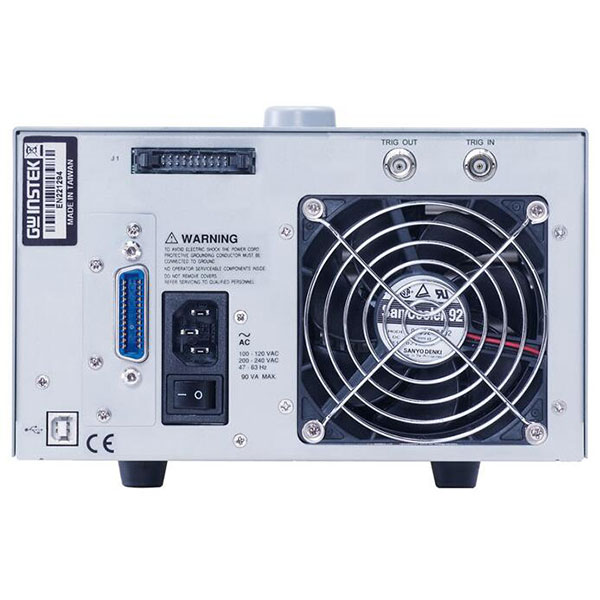

| 觸發輸入/輸出端(BNC) | YES | YES |
| 電流監測輸出 | YES | YES |
| 外部模擬控制 | YES | YES |
| 軟啟動 | YES | YES |
| 序列功能(Normal/Fast) | YES | YES |
| BATT 自動測試 | YES | YES |
| OCP自動測試n | YES | YES |
| OPP自動測試 | YES | YES |
| 預設值 | 10 Sets | 10 Sets |
| 保護 | OCP, OPP, UVP, OVP, OTP, RVP | OCP, OPP, UVP, OVP, OTP, RVP |
| 其它 |
|
|
|
|
| 電源輸入 | 100-120VAC/ 200-240VAC, 47-63Hz | 100-120VAC/ 200-240VAC, 47-63Hz |
| 接口 | USB, GPIB(Option), Analog external control | USB, GPIB(Option), Analog external control |
| 尺寸 & 重量 | 213.8(W) x 124.0(H) x 400.5(D)mm, Approx. 7.5Kg | 213.8(W) x 124.0(H) x 400.5(D)mm, Approx. 7.5Kg |
